RD908 Radar level meter with top-down installation of a Micropilot sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications – be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.
| Product | Radar level meter |
| Model | SUP-RD908 |

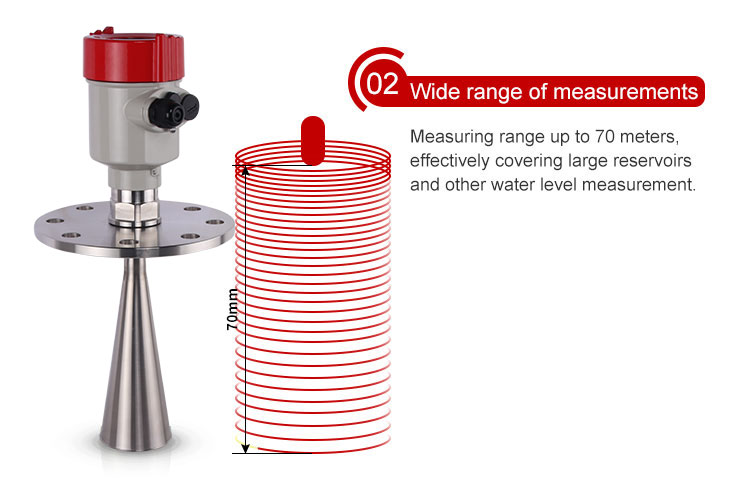

| Measure range | 0-30 meters |

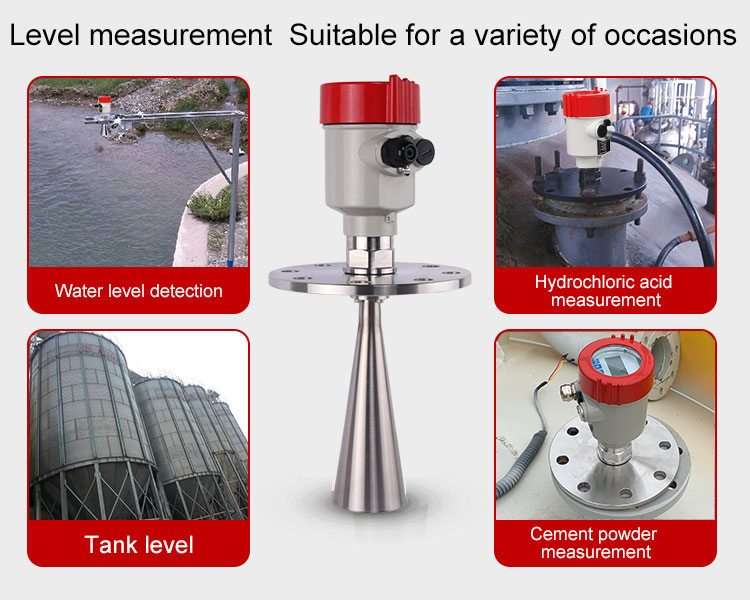

| Application | Rivers, Lakes, Shoal |

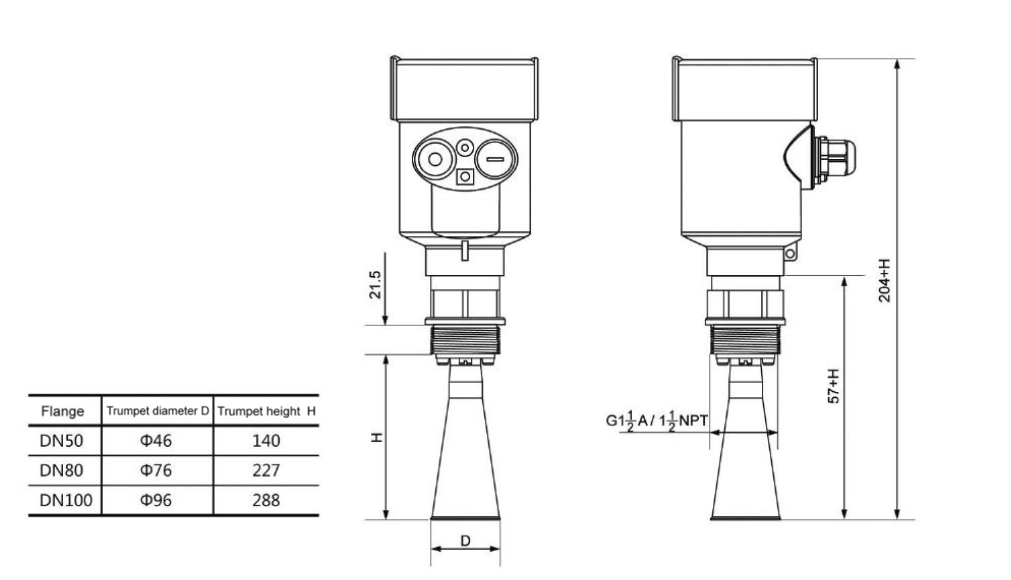

| Process Connection | Thread G1½ A”/frame /flange |
| Medium Temperature | -20℃~100℃ |
| Process Pressure | Normal pressure |

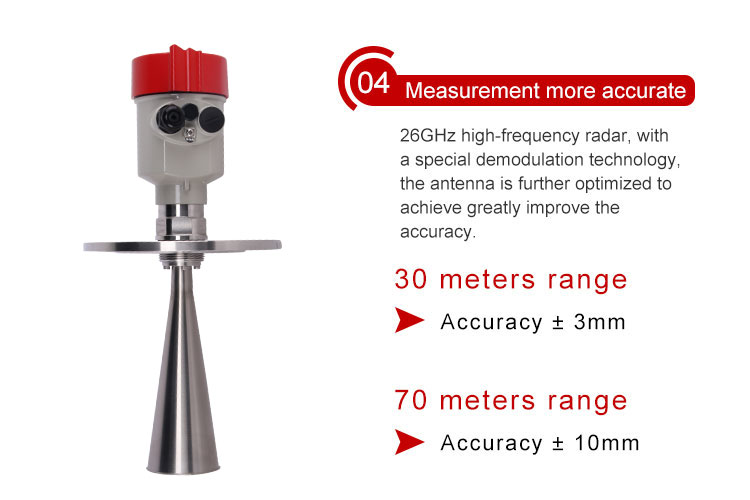

| Accuracy | ±3mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA |
| RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire |
SUP-RD908 Radar level meter is a safe solution even under extreme process conditions (pressure, temperature) and vapors. It can also be used in hygienic applications for non-contact level measurement. it versions are available for different industries like for water/wastewater, the food industry, life sciences or the process industry.
