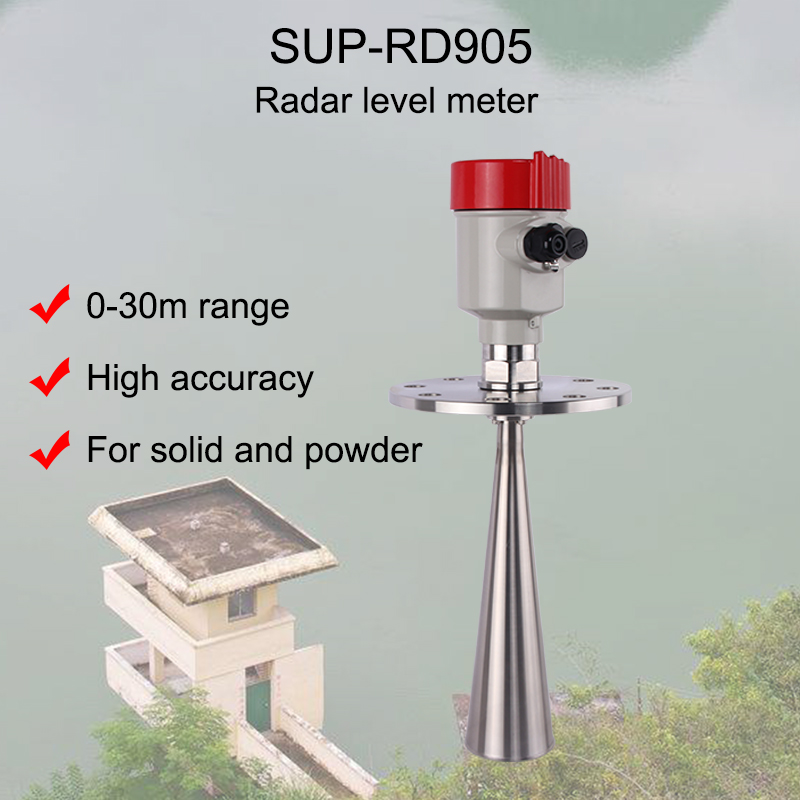

RD905 Radar level meter with high frequency, measurement of Solid particles, powder constant of the best choice.
| Product | Radar level meter |
| Model | SUP-RD905 |
| Measure range | 0-30 meters |
| Application | Solid particles, powder |

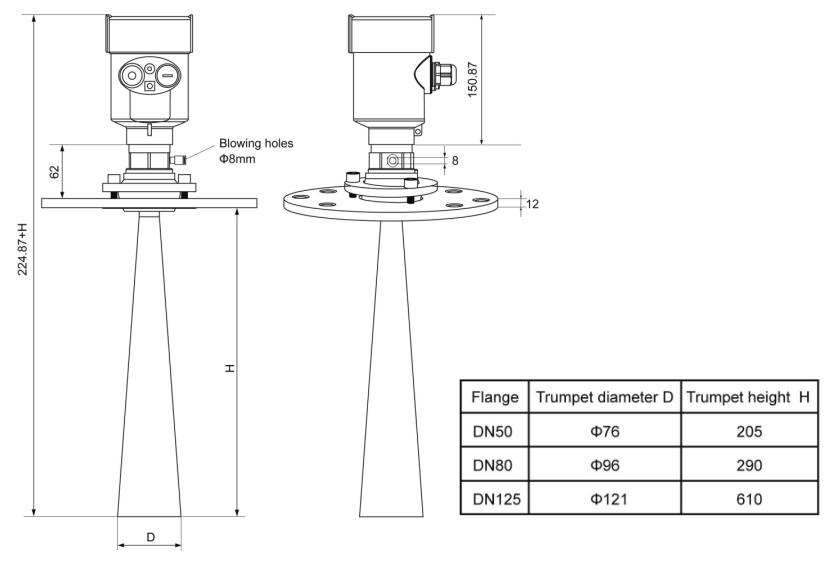

| Process Connection | Thread, Flange |
| Medium Temperature | -40℃~250℃ |
| Process Pressure | -0.1～4.0 MPa (flat flange); -0.1 ~ 0.3 MPa (universal flange) |
| Accuracy | ±10mm |
| Protection Grade | IP67 |
| Frequency Range | 26GHz |
| Signal Output | 4-20mA (Two-wire/Four) |
| RS485/Modbus | |
| Power supply | 2-wire（DC24V）/ 4-wire（DC24V /AC220V） |
 |
 |
 |
| Be installed in the diameter of the 1/4 or 1/6.
Note: The minimum distance from the tank wall should be 200mm. Note: ① datum ②The container center or axis of symmetry |
The top conical tank level, can be installed at
the top of the tank is intermediate, can guarantee the measurement to the conical bottom |
A feed antenna to the vertical alignment surface.
If the surface is rough, stack angle must be used to adjust the angle of cardan flange of the antenna to the alignment surface. (Due to the solid surface tilt will cause the echo attenuation, even Loss of signal.) |
