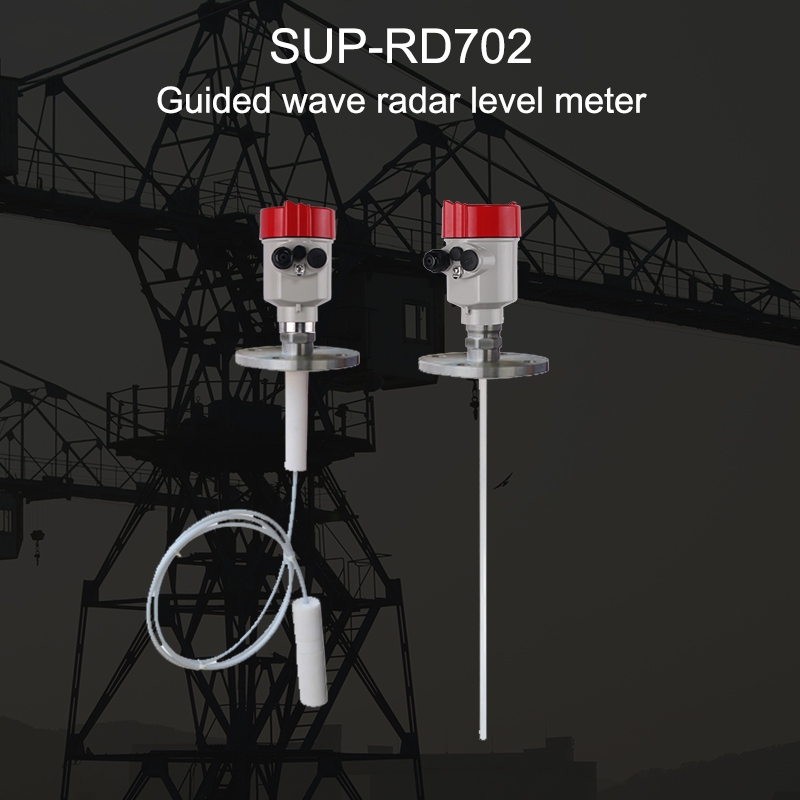

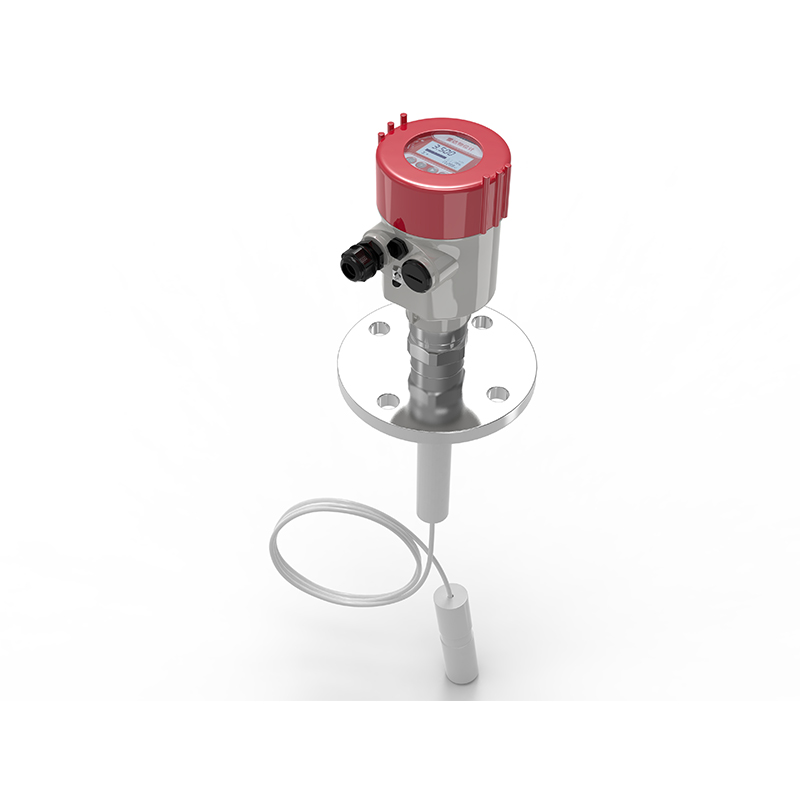

-RD702 Guided wave radar for level measurement in liquids and bulk solids. In level measurement with guided wave radar, microwave pulses are conducted along a cable or rod probe and reflected by the product surface. PTFE antenna, suitable for corrosive medium measurement.
| Product | Guided wave radar level meter |
| Model | SUP-RD702 |
| Measure range | 0-20 meters |
| Application | Acid, alkali, other corrosive media |
| Process Connection | Flange |
| Medium Temperature | -40℃~130℃ |
| Process Pressure | -0.1 ~ 0.3MPa |
| Accuracy | ±10mm |
| Protection Grade | IP67 |
| Frequency Range | 500MHz-1.8GHz |
| Signal Output | 4-20mA (Two-wire/Four) |
| RS485/Modbus | |
| Power supply | DC(6~24V)/ Four-wire DC 24V / Two-wire |

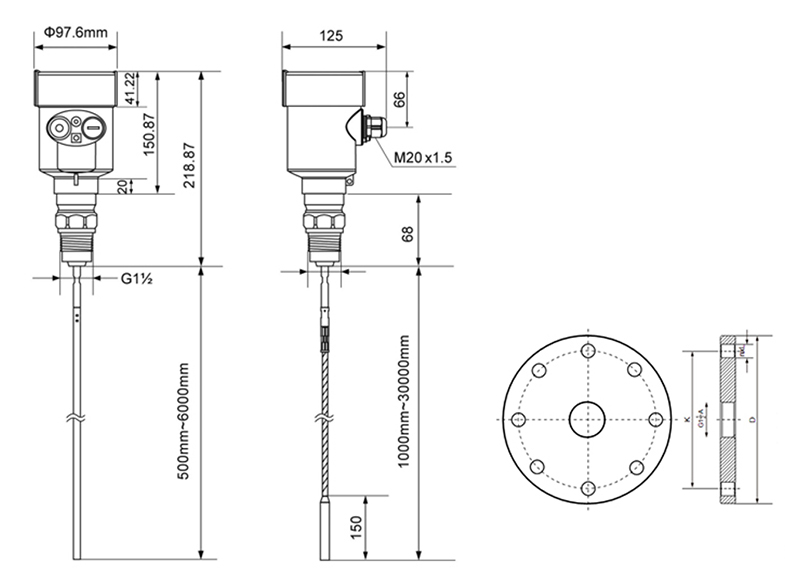

SUP-RD702 guide wave radar level meter can launch high frequency micro-waves which transmits along with probe.
H—-Measuring range
L—-Empty tank height
B—-Blind area
E—-Minimum distance from probe to tank wall >50mm
Note:
The top Blind area refers to the minimum distance between the highest material surface of the material and the measurement reference point.
Blind area at the bottom refers to a distance that cannot be accurately measured near the bottom of the cable.
The effective measurement distance is between the top Blind area and the bottom Blind area.
